Professional Boost Step Up Power Module / 12v To 24v Boost Converter

Product Categories

Changzhou Geng Tai Electronics Co., Ltd

Contact Now

Brand Name : G·T

Model Number : GTK - 12 to 24V

Place of Origin : China

MOQ : 1 PCS

Price : USD7-70 PCS

Payment Terms : T/T

Supply Ability : 500 pcs per month

Delivery Time : 10-15 working days upon order quantity

Packaging Details : Neutral factory box

Color : as shown in the figure

Warranty : 2 Years

Size : 75*40*22

name : step up power module

Contact Now

Model	12 to 24V
Input voltage	DC12(9-20V)
output voltage	DC24V±0.5
Output current	21A
output power	500W
No-load current	20mA
conversion efficiency	≥93%
Protection function	Overcurrent, overvoltage, output short circuit
Protection grade	IP67
working temperature	-20～80℃
Line length	110MM

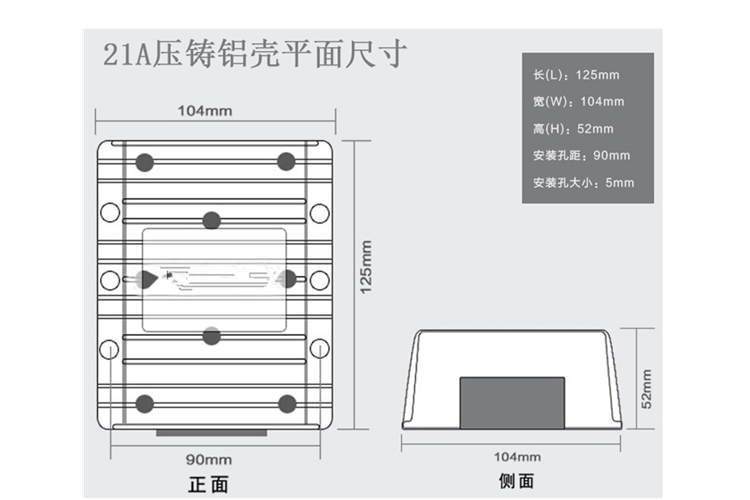

Size	12510552
weight	1Kg/PCS

Model	12to24V
Input voltage	DC12(9-20V)
output voltage	DC24V±0.5
Output current	3-15A
output power	70W-360W
No-load current	20mA
conversion efficiency	≥93%
Module properties	Conversion module of non isolated boost power supply
Protection function	Overcurrent, overvoltage, output short circuit
Protection grade	IP67
working temperature	-20～80℃
Line length	110MM

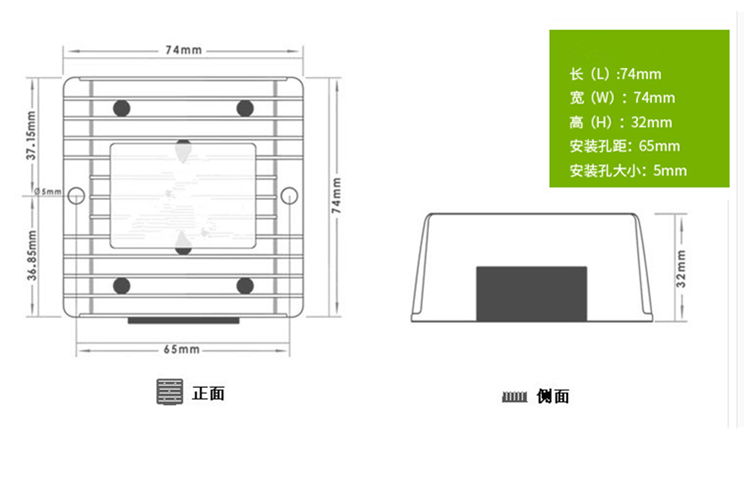

Size	747432
weight	250g/PCS

Model	12to24V
Input voltage	DC12(9-20V)
output voltage	DC24V±0.5
Output current	1A-5A
output power	24W-120W
No-load current	20mA
conversion efficiency	≥93%
Protection function	Overcurrent, overvoltage, output short circuit
Protection grade	IP67
working temperature	-20～80℃
Line length	110MM
Size	754022
weight	50g / PCS

Professional Boost Step Up Power Module / 12v To 24v Boost Converter
